!SLIDE x=0 y=0 scale=2

##Introduction to *Robotics*

<img src="intro_to_robotics.jpg" width="100%" />


<img src="robodarshan.png" width="100%" />

!SLIDE x=2000 y=0 rotate-y=-50 scale=2

##WELCOME EVERYBODY

![](./face_detect.jpg)

// To be replaced by live face detected image

!SLIDE x=-2000 y=0 rotate-y=50 scale=2

##*What is "Robot"* ?

 <img src="troll_final.jpg" width="72%" />


!SLIDE x=0 y=-800 scale=1 z=500 rotate-x=-30

##Let's ***Google*** it

 <img class="side" src="robot_def.jpg" width="85%"/>


!SLIDE x=0 y=1500 rotate-x=45 scale=5

_**admin**_ : OK **Bot**, show us what can you do ...

_**bot**_ : I can ...

* Learn Skills ranging from electronics,  mechanics, controls, programming, etc ...
*  Work in Industry assembly lines, like a robotic arm used for car-painting, parts assembling, etc...

<img src="industry.jpg" width="50%" />

!SLIDE x=0 y=-1500 z=-1500 rotate-x=45 scale=5
##Contd...

* Function as a mobile robot such as terrestial, aerial, aquatic or hybrid vehicle
 be it manually controlled or autonomous.

* Work in swarms to co-ordinate a task

<img src="swarm.jpg" width="50%" />

!SLIDE x=3500 y=1500 rotate-x=45 rotate-z=90 scale=6

##**So, what will you learn today ?**

How about some robotics ?
Well, we guess you already knew that :)

* First we'll talk about ***Manual Robotics***, the ones controlled by human (yup, that's you)

* Then, we'll move on to autonomous bots, the ones which can perform simple tasks on their own. ( Remember Wall-E ? )

* If time permits, we'll talk about robots with **"eyes"** (err.. cameras).

!SLIDE x=3500 y=-4000 z=-2500 rotate-x=45 rotate-z=90 scale=4

##Mechanical Construction

- **Chassis**, i.e. the basic body structure (generally rectangular)
    - Preferred Material : Flex Board (25 cm x 25 cm)
    <img src="board.jpg" width="25%"/>

    - Others : Motor Clamps
    <img src="clamps.jpg" />

!SLIDE x=4600 y=2550 scale=6 rotate-z=0 rotate-x=0 rotate-y=60 z=5000

## **Wheels**

- **Normal Wheels** , the ones you see in cars ... toy cars.
    <img class="side" src="all_wheels.jpg" width="25%"/>
    <img class="side" src="wheel1.jpg" width="19%"/>

- **Castor Wheels** , a non-drivable wheel that is mounted at the bottom of a vehicle (or robot, in our case), that can move in any direction.  You can find them under the ( legs of ) movable tables.
    <img class="side" src="cas1.jpg" width="20%"/>
    <img class="side" src="cas2.jpg" width="20%"/>


!SLIDE x=5600 y=3000 z=0 rotate-x=0 rotate-y=-45 rotate-z= scale=6

##**DC Motors**

- Runs on DC input.
- Types
    - **Geared Motor :**
        - Pros:
            1. Used for bringing about a change in speed, by the use of gears.
            2. Also used to change axis and direction of motion
        - Cons:
            1. No feedback mechanism.



!SLIDE x=6000 y=4000 scale=2

##**DC Motors (contd.)**

- Types (contd.)
    - **Servo Motors**
        - Pros:
            - Used for high torque operations
        - Cons:
            - Costly

<img class="side" src="motor1.jpg" width="40%" /> <img class="side" src="motor2.jpg" width="40%" />

!SLIDE x=6200 y=4300 z=-1000 rotate-x=40 rotate-y=-30 scale=1

##Motion Direction Control

- H-Bridge Circuit
    - Simple electrical circuit using which you can change the polarity at the load.

<img src="h-br.gif" width="40%" />

!SLIDE x=8000 y=4300 z=-500 rotate-x=20 rotate-y=-45 scale=1

- Example:
    - DPDT Switch:
    Switching device that uses H-Bridge principle to change the polarity of load and hence the motion of the motor whenever needed.

<img class="side" src="dpdt2.gif" width="40%" />
<img  class="side" src="dpdt1.jpg" width="40%" />

!SLIDE x=5000 y=4500 scale=10  rotate-y=0 rotate-x=-30
##Drives

- Types of drive we'll be using:
    - 2 wheel drive, 2 gearbox with castor wheel
    - 4 wheel drive, 4 gearbox
- Others
    - N Wheel Drive
    - Tank Wheel Drive

!SLIDE x=8000 y=500 z=1000 rotate-y=-15 scale=6 rotate-x=-15

##**2 wheel drive with castor wheel**

It has

- 2 active wheels with gearboxes
- 1 castor wheel for balance and free movement

<img src="dr1.jpg" width="40%" />


!SLIDE x=13000 y=1500 z=1000 rotate-y=45 scale=10 rotate-x=45

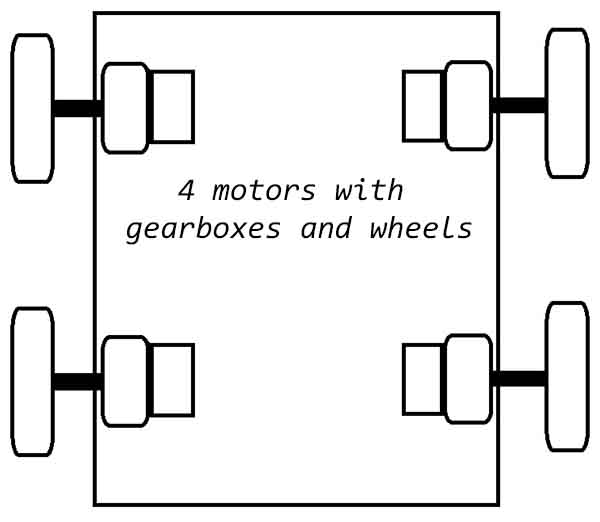

##**4 wheel drive with 4 gearboxes**

It has 4 wheels connected with 4 gearboxes for fast and agile movement

<img src="dr2.jpg" width="40%" />

!SLIDE x=18000 y=4500 rotate-y=65 scale=6 rotate-x=135 z=-4500

##**Locomotion using Differential Drive system**

bot: I wanna move...
admin: How?
bot: Well now that you have asked so nicely...

- Differential Drive is one way to accomplish this
<img src="drive.jpg" width="70%" />
- The simplest motions (shown above) occur when all of the wheels are moving
- Different motions are also possible if we keep one/many wheels static

!SLIDE x=7000

**SHOW TIME**

We're pretty sure that you are bored to hell.
So, here's a little treat for you.

Sit back and enjoy :D

!SLIDE rotate-x=00 x=5000 y=500 z=-500 rotate-y=-30
**Question time**

Now, Throw something at us

Just dont throw an error :P
